Shear studs for drawing-based structural project orders

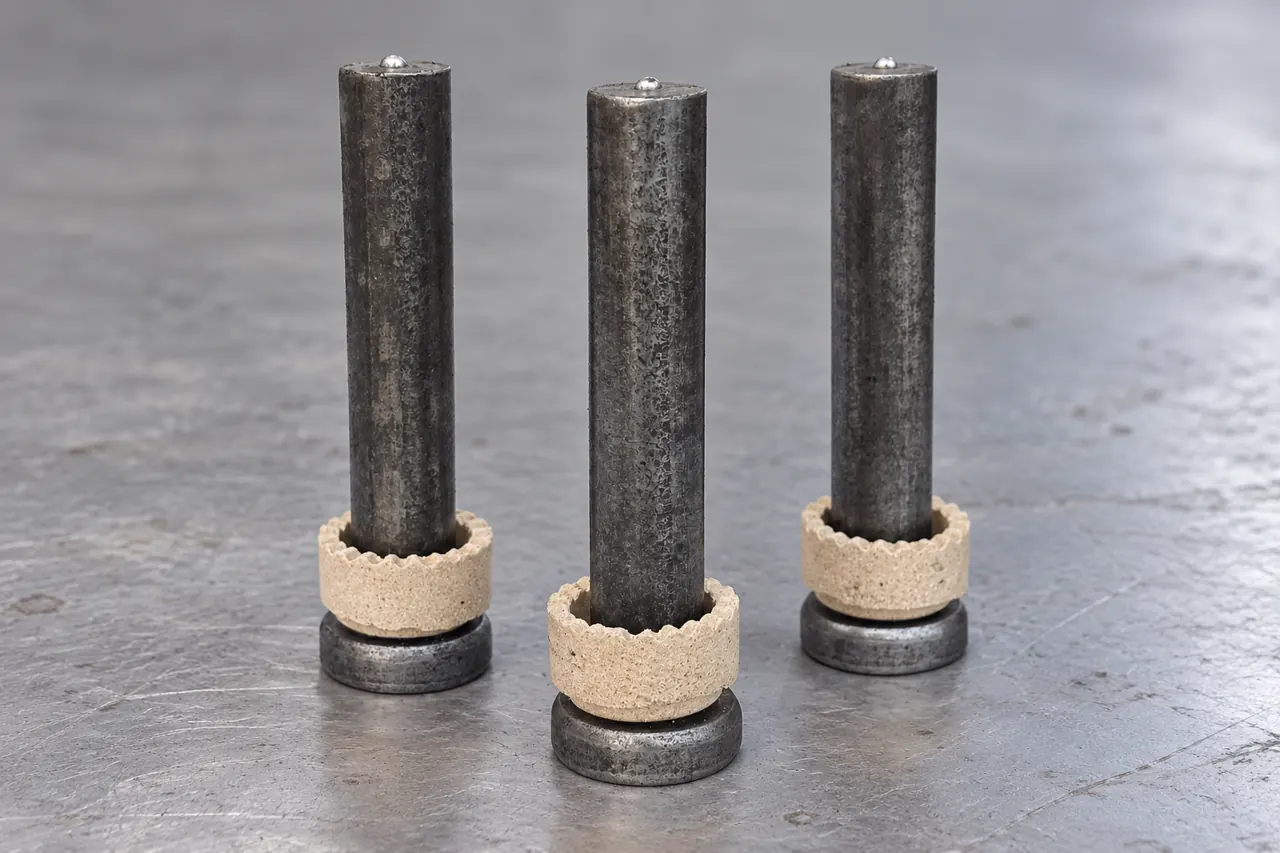

Specify shear studs through the project drawing, material requirement and welding-related acceptance. Our catalogue contains a cylindrical-head stud enquiry, which is a candidate reference rather than proof of a complete approved range. We can review the proposed supply while your project team controls design and welding qualification requirements.
Read the complete stud drawing

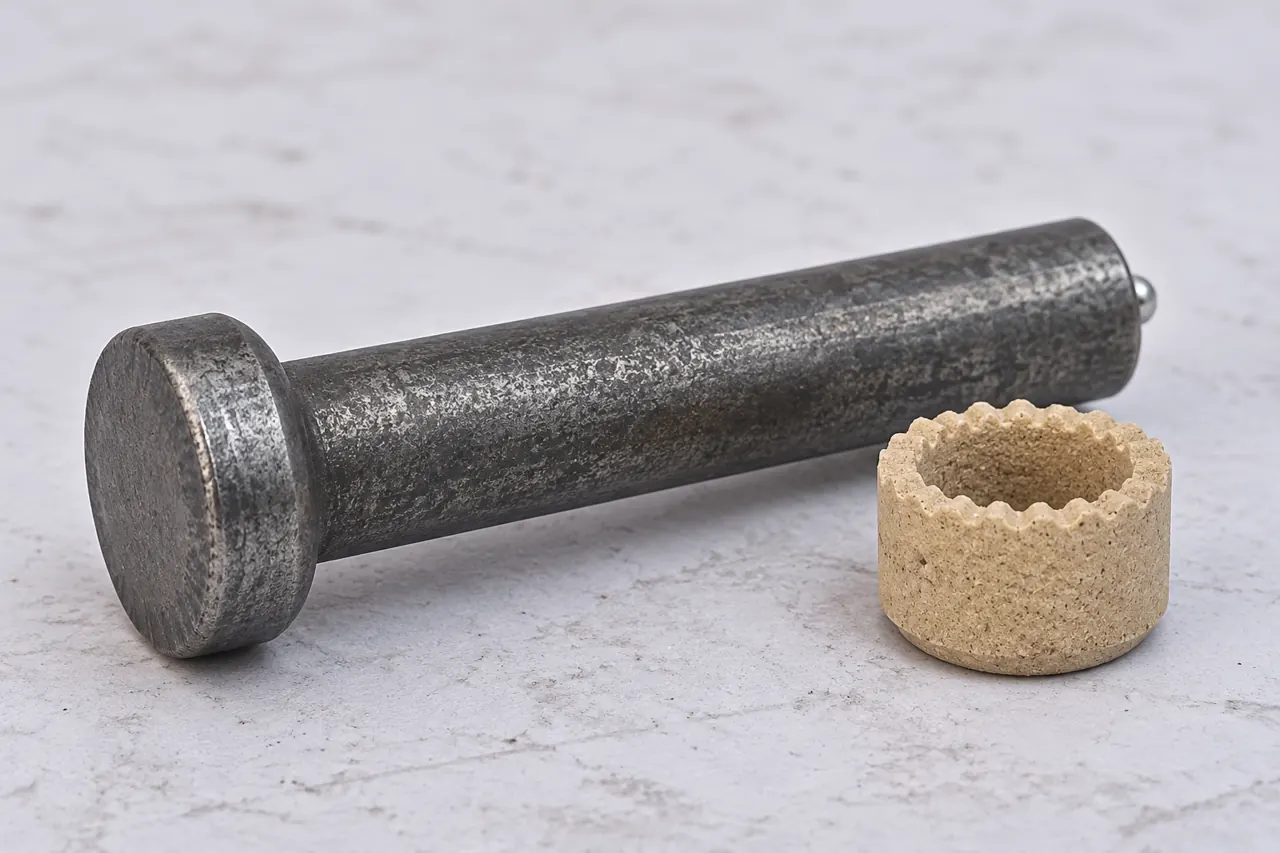

Provide the current revision with shank diameter, length basis, head geometry and other critical dimensions. State whether a dimension applies before or after welding where relevant to the project. A catalogue nominal size should not replace the drawing's actual geometry and acceptance basis.
Confirm the actual offered stud
Ask the proposal to identify the stud material, dimensions and available records. Check the specific item rather than inferring that every similar length or diameter is available. Review any alternative through the project approval process before allowing it into the sample or volume order.
Keep material evidence connected to the batch
Agree which material and inspection records the project requires and how the supplied studs are identified. A document should match the relevant material or production batch. General product information serves a different purpose from the evidence needed to release an actual project delivery.
Separate accessories from the stud line
List ceramic ferrules and any other requested accessories explicitly. Confirm compatibility and included quantities in the proposal; do not assume accessories accompany every stud. Welding equipment, installation and site acceptance are separate responsibilities and should be identified in the project supply scope.
Use project criteria for sample approval

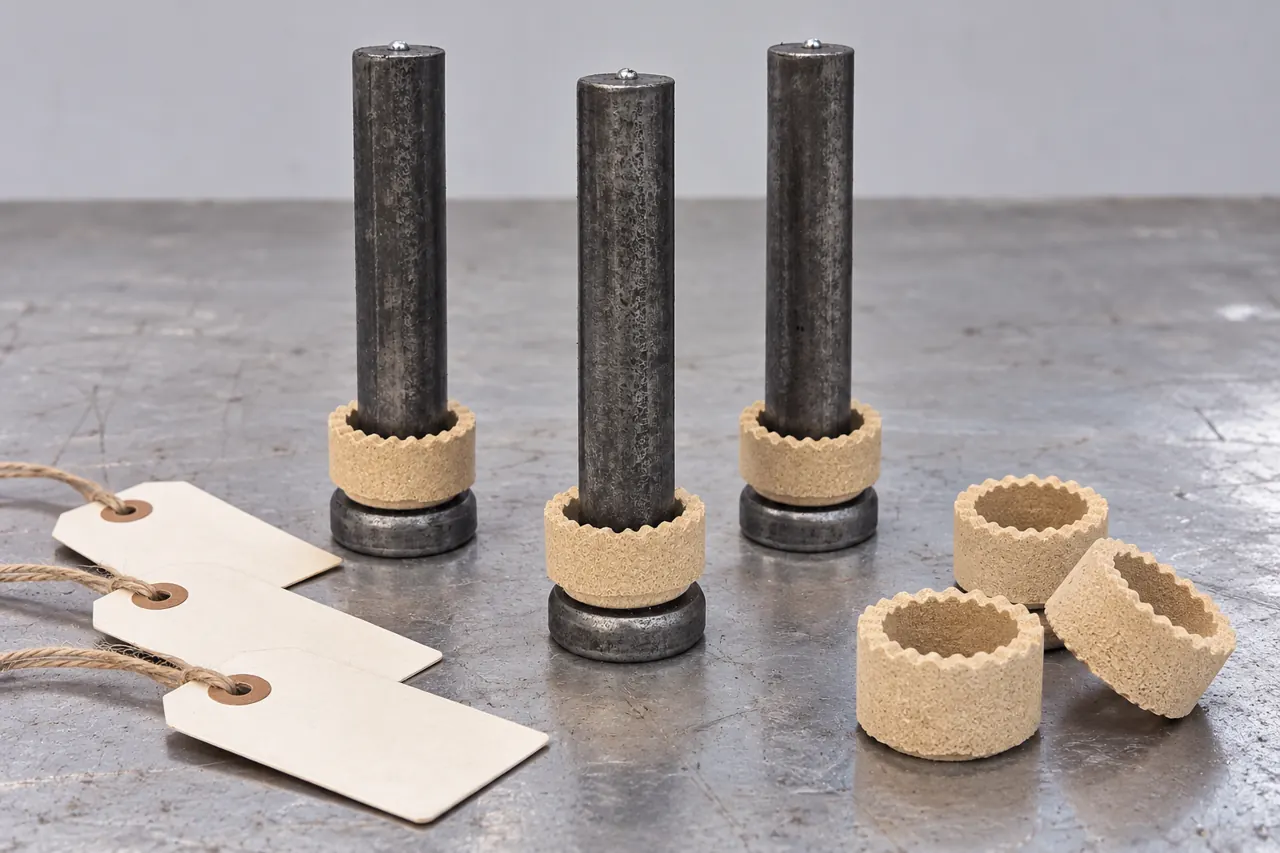

Retain the sample identity with dimensional checks and any welding-related evaluation required by the project. Follow the approved procedure and responsible technical team's criteria. A photograph of a stud or a visually neat weld should not be treated as a substitute for the specified acceptance evidence.
Confirm producer and order responsibility
Our wider industrial catalogue includes stud enquiries alongside steel wire and steel shot. Ask us to confirm the producer and supply responsibility for the specific proposal. Additional testing, sample work and accessory preparation need explicit confirmation, rather than an assumption that every activity occurs in-house.
Pack to preserve item and batch identity

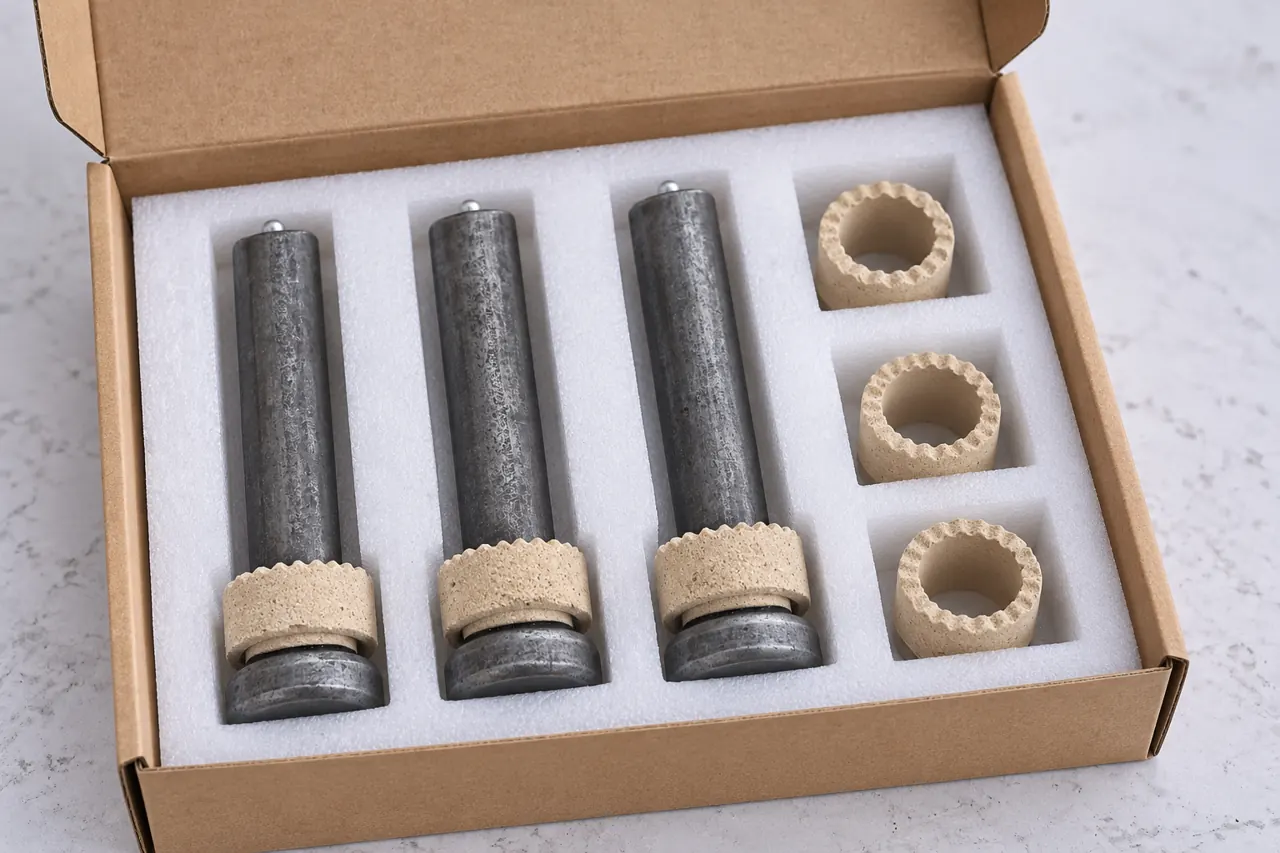

Agree carton or other package quantities, item labels and protection for the studs and ferrules. Keep different dimensions separated and linked to the packing list. Inspect damaged or mixed packages before site distribution so the project retains a clear record of what was supplied and where it belongs.
Review revisions before repeat supply
Reference the accepted drawing, material and sample approval in repeat orders. Identify affected items when the project changes dimensions or acceptance requirements. A previous approval should not silently cover a revised stud or a new accessory combination that was not included in the original review.
Send the project stud package
Share the drawing revision, stud dimensions, material requirement, quantities and welding acceptance documents. List ferrules and other accessories separately, with required records and destination. We can review the catalogue reference and confirm the specific supply proposal and commercial scope for your project team to assess.
