SGCC Hot Dipped Galvanized Steel Sheet Inquiry | 0.1–10mm Z10–Z600 Checker Pattern Requirements
-
CoatingZ10 ~ Z600HardnessFull Hard
-
Spangle TypeRegular SpangleThickness0.1-10mm(0-0.39in)
-
TypeSteel SheetApplicationMaking Pipes, Cutting Sheets, Making Small Tools, Making Corrugated Sheets, Making Container, Making Fences
-
CertificateGs, ISO 9001Delivery Timewithin 7 days
-
GradeSGCC/CGCC/DX51DLength2000-12000mm or customized
-
Oiled or Non-oiledSlightly OiledProcessing ServiceBending, Welding, Decoiling, Cutting, Punching
-
Skin PassYesStandardAISI
-
TechniqueHot Rolled BasedTolerance±1%
-

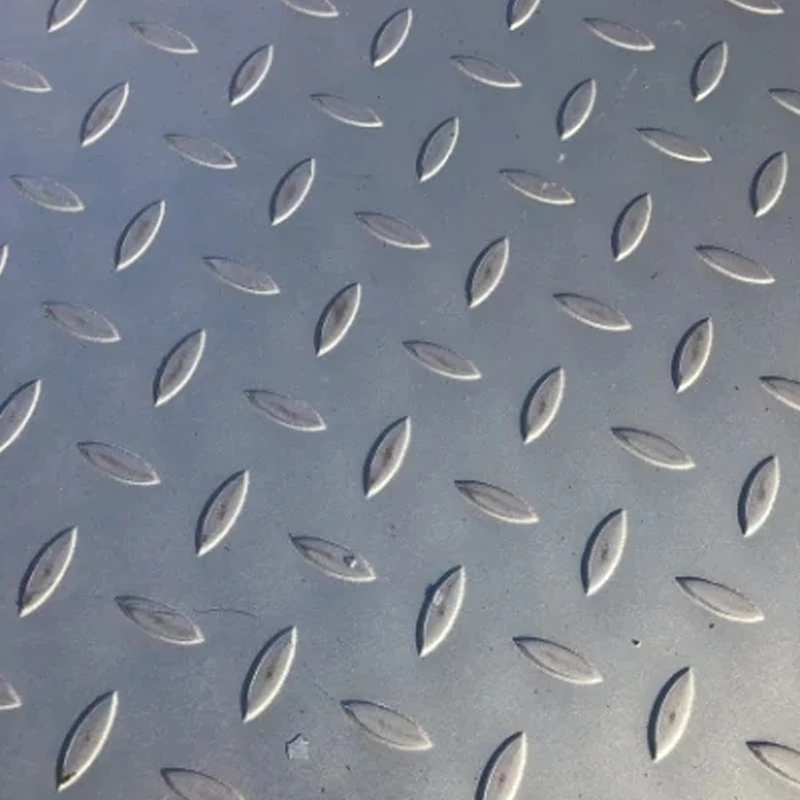

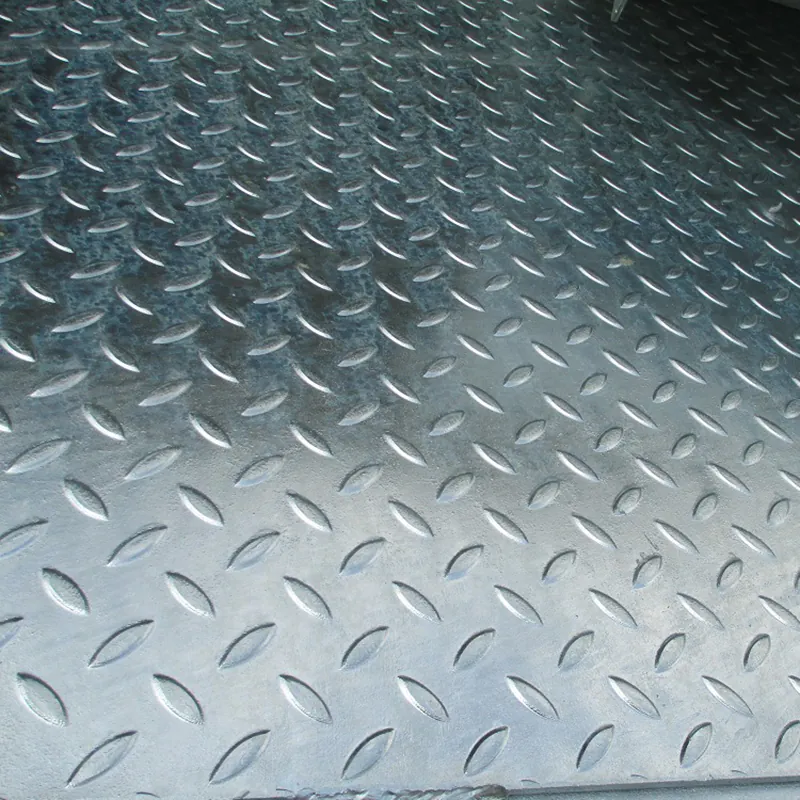

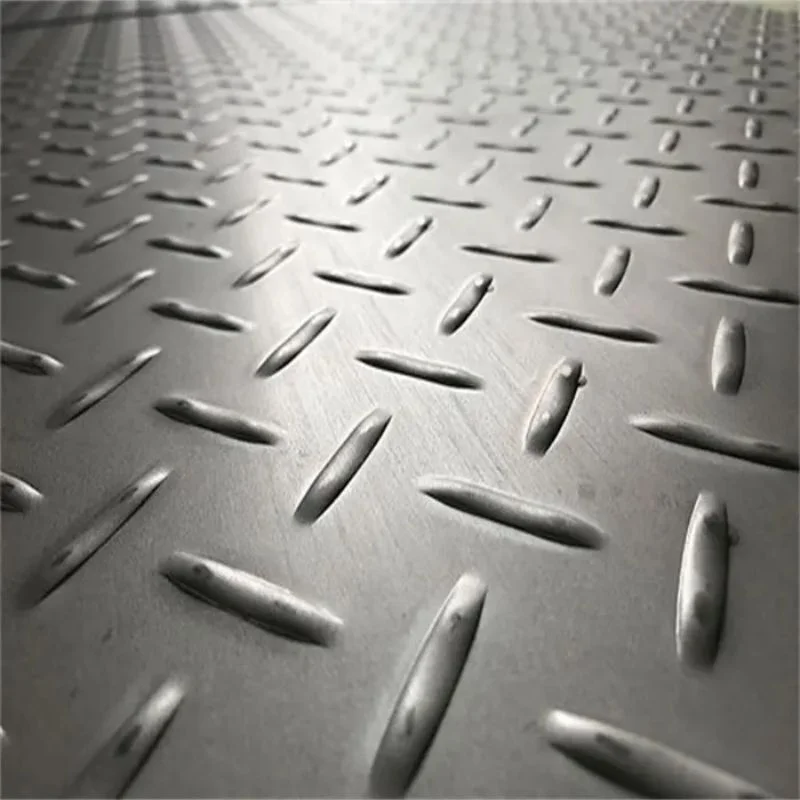

Product NameGalvanized Steel Checker PlateKeywordChecker Plate,steel plate, checkered sheet
-
SurfaceGalvanized CoatedShapeFlat.sheet
-
MaterialSGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345SpangleBig Medium Small Zero
-
MOQ1 TonZinc Coating30-275g/m2
-
TechnologyCold Rolled.hot RolledColorCustomers Samples Color
Confirm whether the supplied sheet is plain or checkered before choosing dimensions and coating.
Pattern and grade
The title describes galvanized sheet, while the detailed product name says checker plate. Agree the actual pattern drawing and material designation rather than assuming raised geometry or a particular base grade from the title alone.
Thickness and coating
The actual specification is 2–10 mm, within a broader described thickness scope. Confirm base thickness and zinc measurement basis, distinguishing the Z10–Z600 code from the separate coating mass range.
- Actual steel designation
- Plain or checkered geometry
- Base thickness and usable width
- Zinc mass and inspection basis
- Cut length and surface criteria
Acceptance requirements
Full hard, skin pass and several processing services are described. Agree the actual condition and tests; no hardness value, slip resistance, structural load capacity or corrosion life is established by those references.
