LTS-20681 Galvanized High-Carbon Flat Spring Wire for Tent Inquiries

• Grade

  spring steel wire
  Steel Grade

  high carbon spring steel
• Tolerance

  ±0.01mm
  Type

  flat wire
• Model Number

  LTS-20681
  Alloy Or Not

  Is Alloy
• Application

  Manufacturing
  Delivery Time

  8 ~ 14 days
• Processing Service

  Bending, Cutting
  Special Use

  Cold Heading Steel
• Standard

  ASTM
  Surface

  Galvanized
• Tensile strength

  1000-2800Mpa
  Flat steel wire 1

  3x1mm
• Flat steel wire 2

  4x1.2mm
  Flat steel wire 3

  5x1.5mm
• Flat spring wire size 4

  2x0.6mm
  Flat spring wire size 5

  2.5x1mm
• Flat spring wire size 6

  6x2mm
  Flat steel wire Feature

  High tensile
• Advantage

  Other size can be customized

LTS-20681 galvanized high-carbon flat spring wire has five actual dimension-pair choices. The1000–2800MPa tensile reference requires actual grade and supplied-condition evidence.

Select an actual flat section

Actual pairs are1x3,4x1,5x1.5,6x2 and2x0.6mm. The4x1.2mm parameter differs from actual4x1mm,while2.5x1mm is not an actual choice.

• Flat wire is the type.
• Five dimension pairs are selectable.
• Galvanized surface is described.
• ±0.01mm tolerance is stated.
• Custom sizes are referenced.

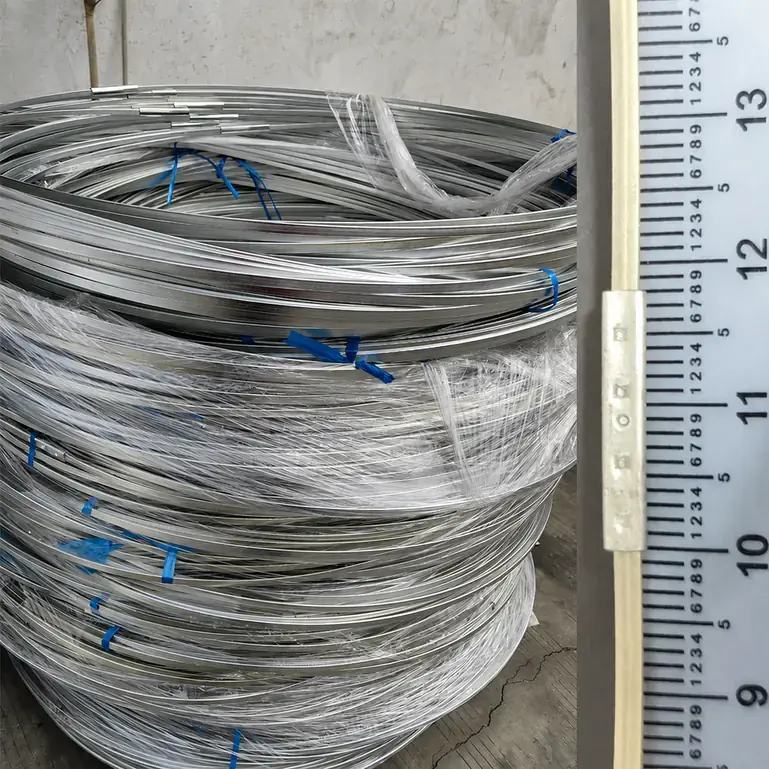

Confirm section orientation and tests

1x3 versus3x1 wording needs drawing orientation clarified. Request actual dimensions,tolerance basis and tensile test scope.

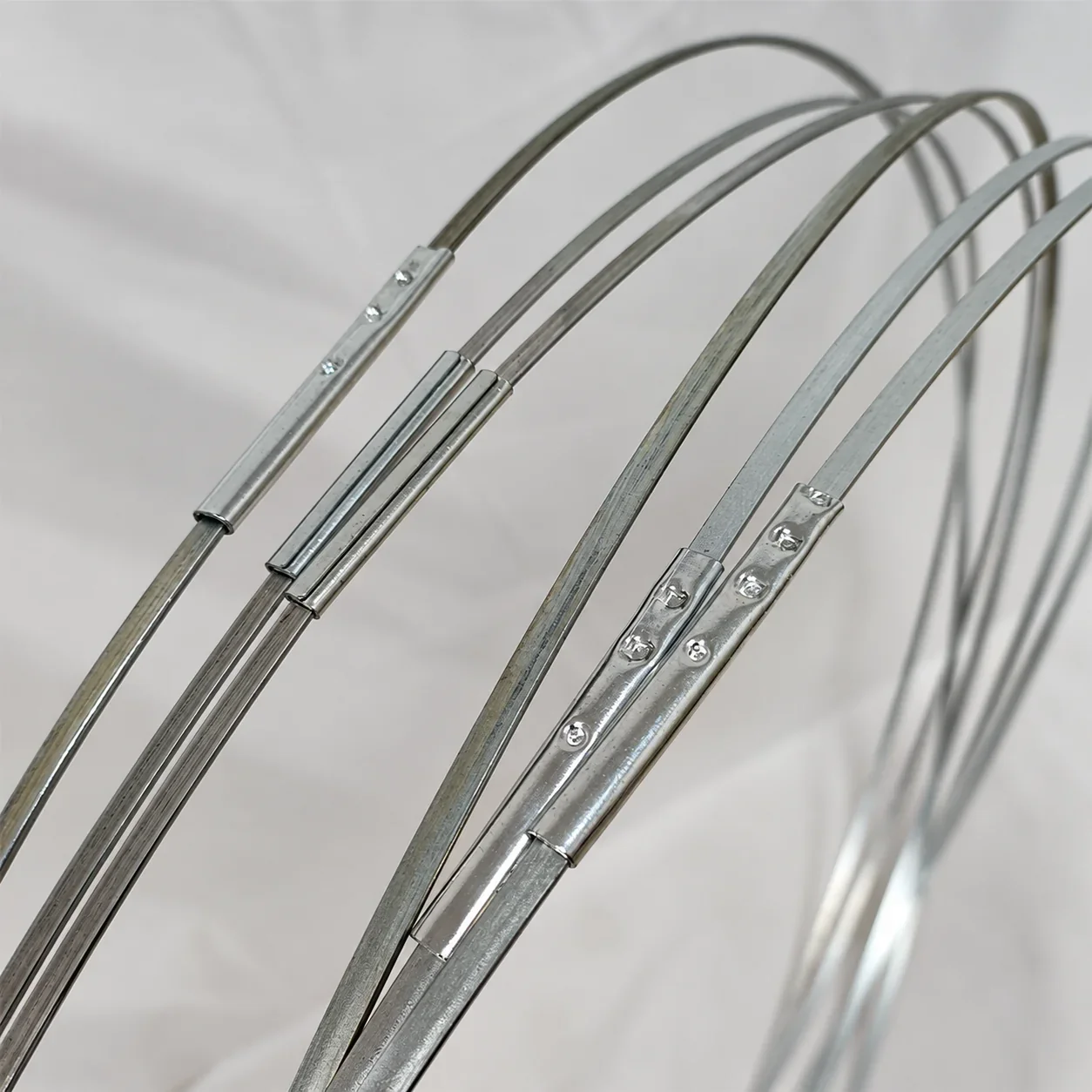

Define tent-spring acceptance

Tent/foldable-spring use does not establish fatigue life or a completed design. Obtain actual grade,treatment and coating records before selecting the wire for repeated bending.
