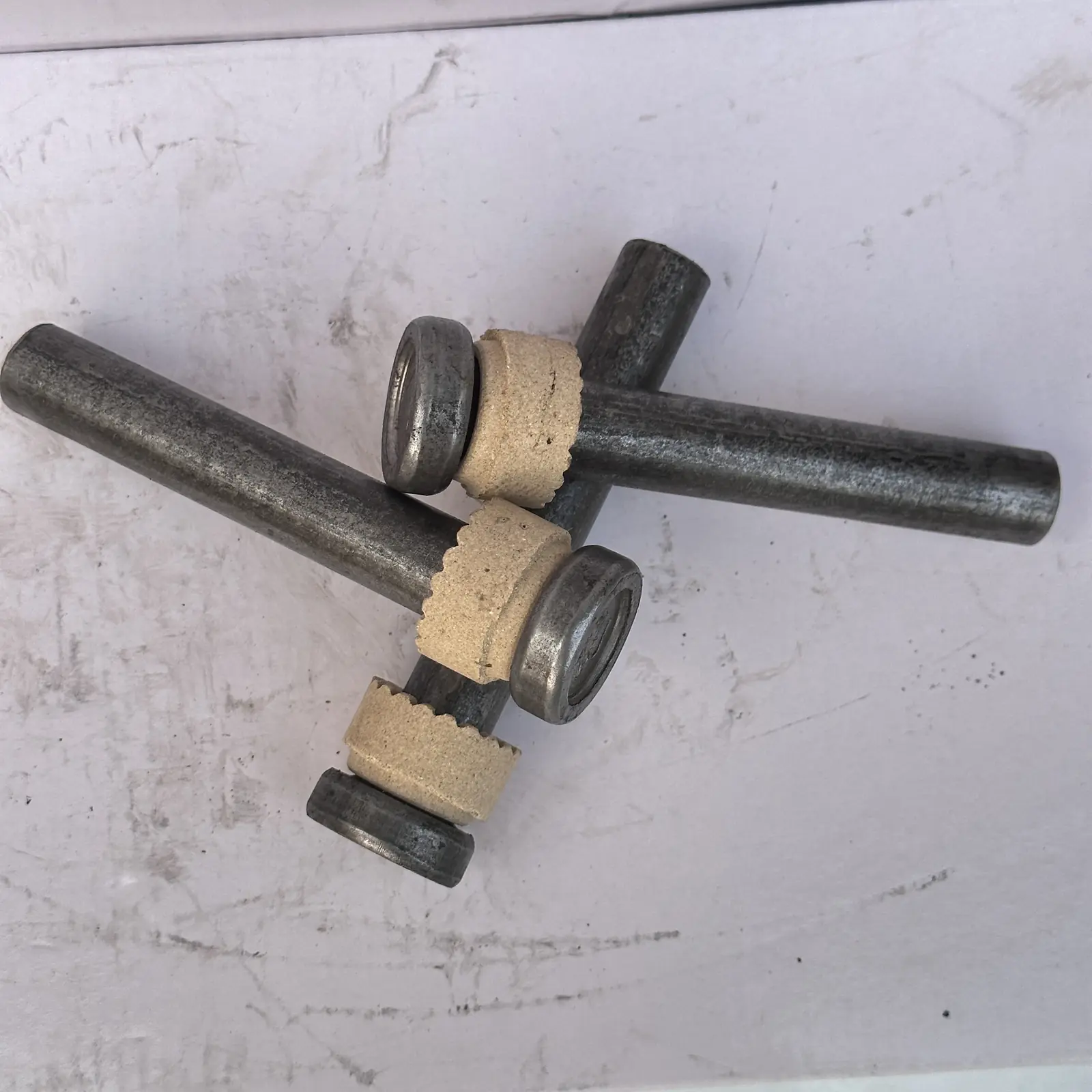

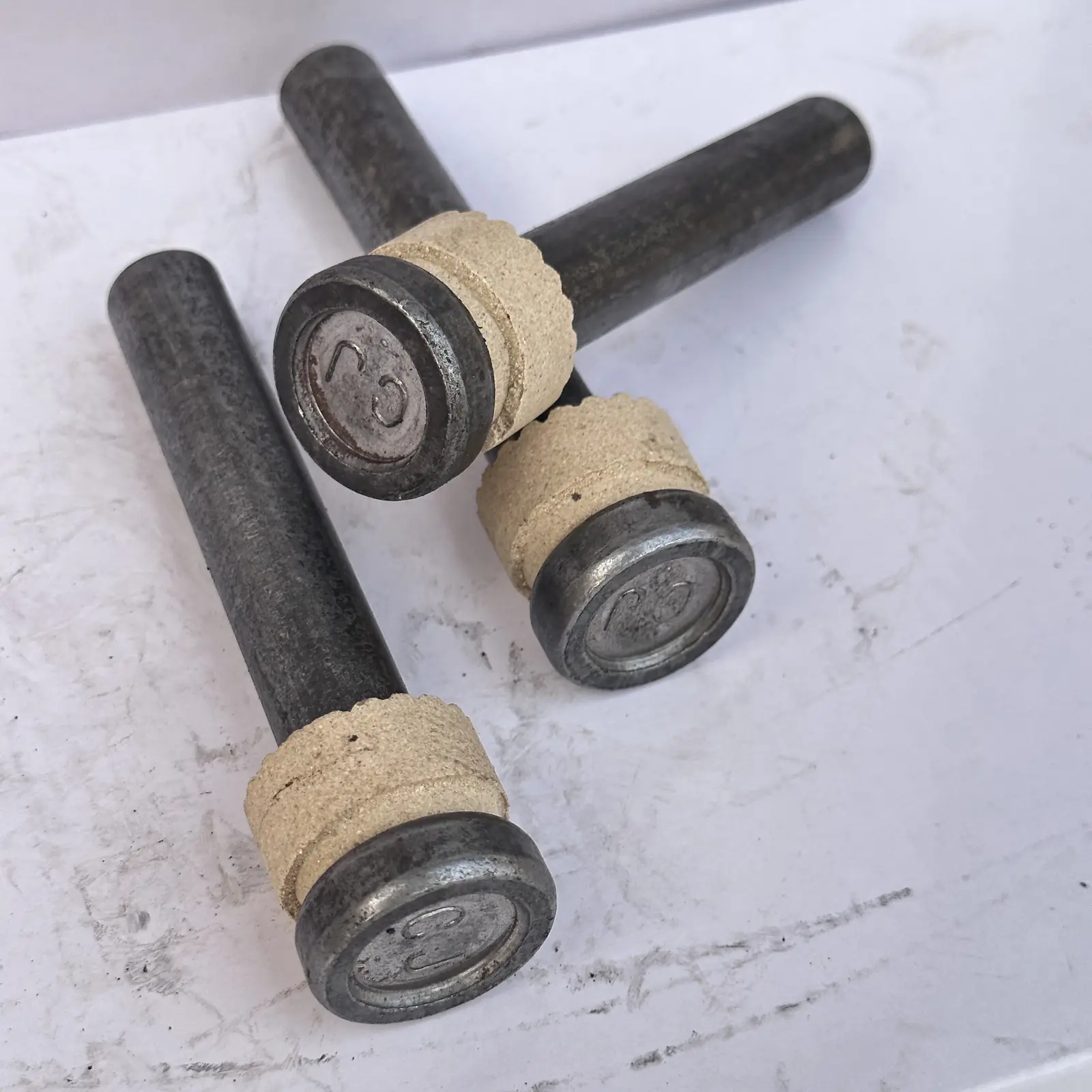

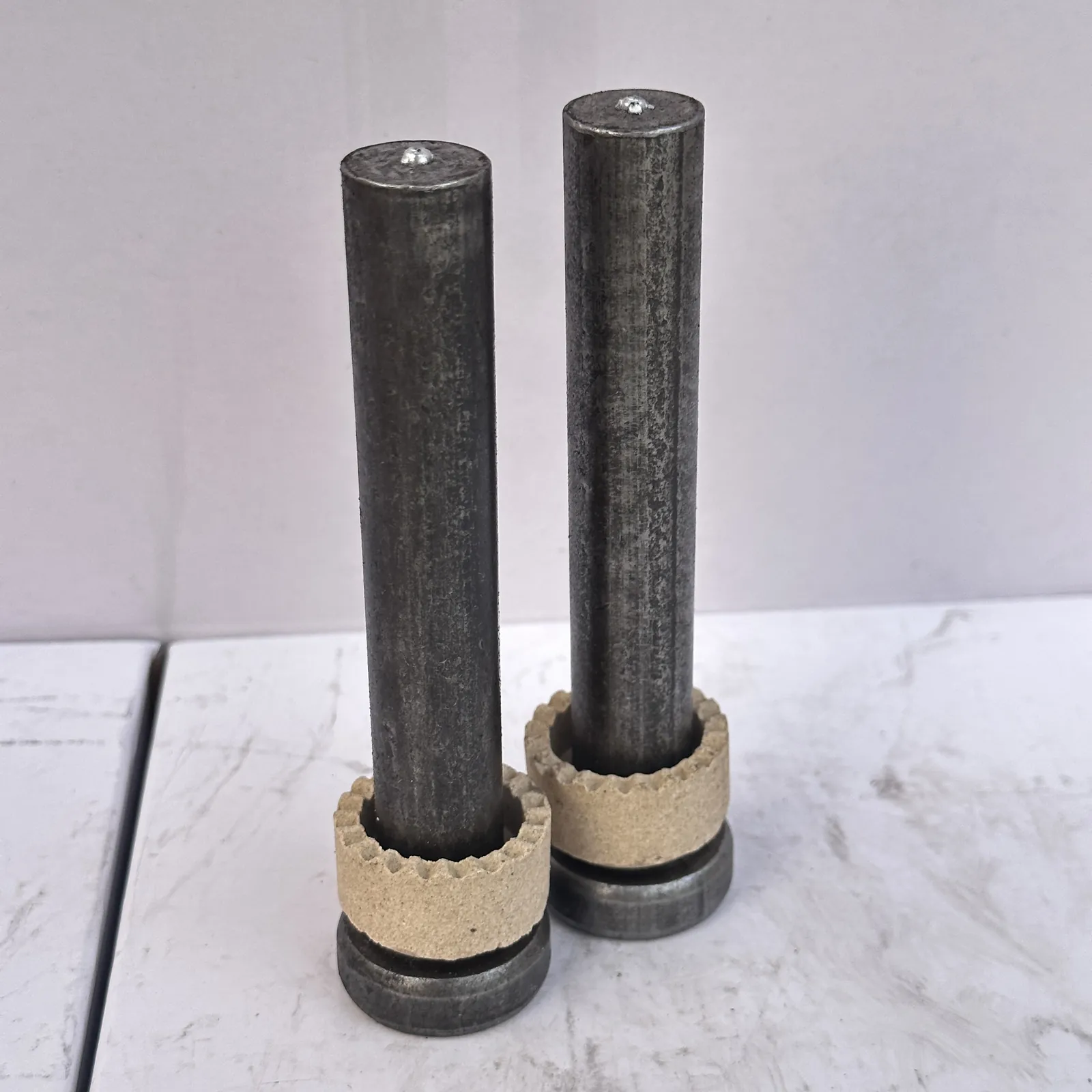

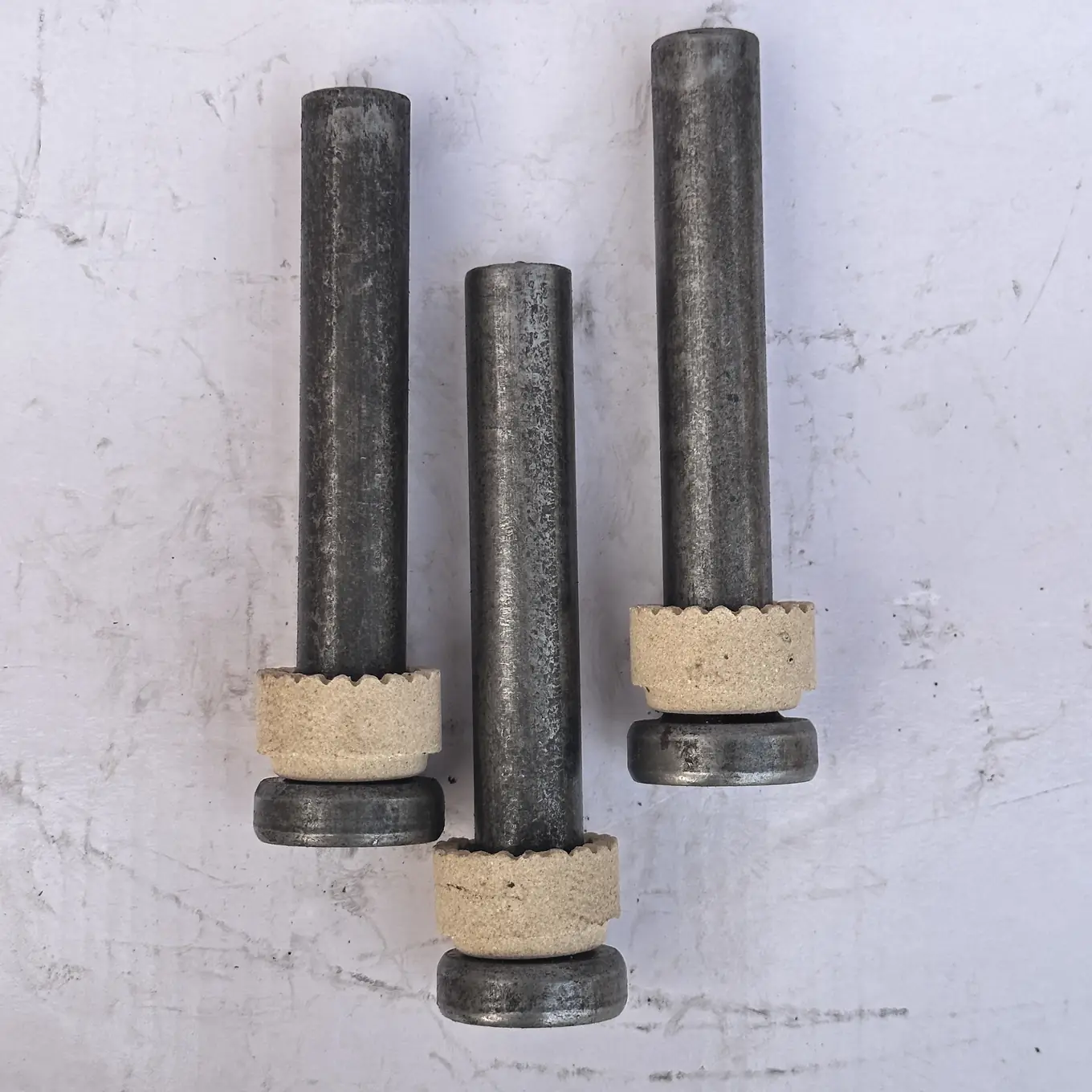

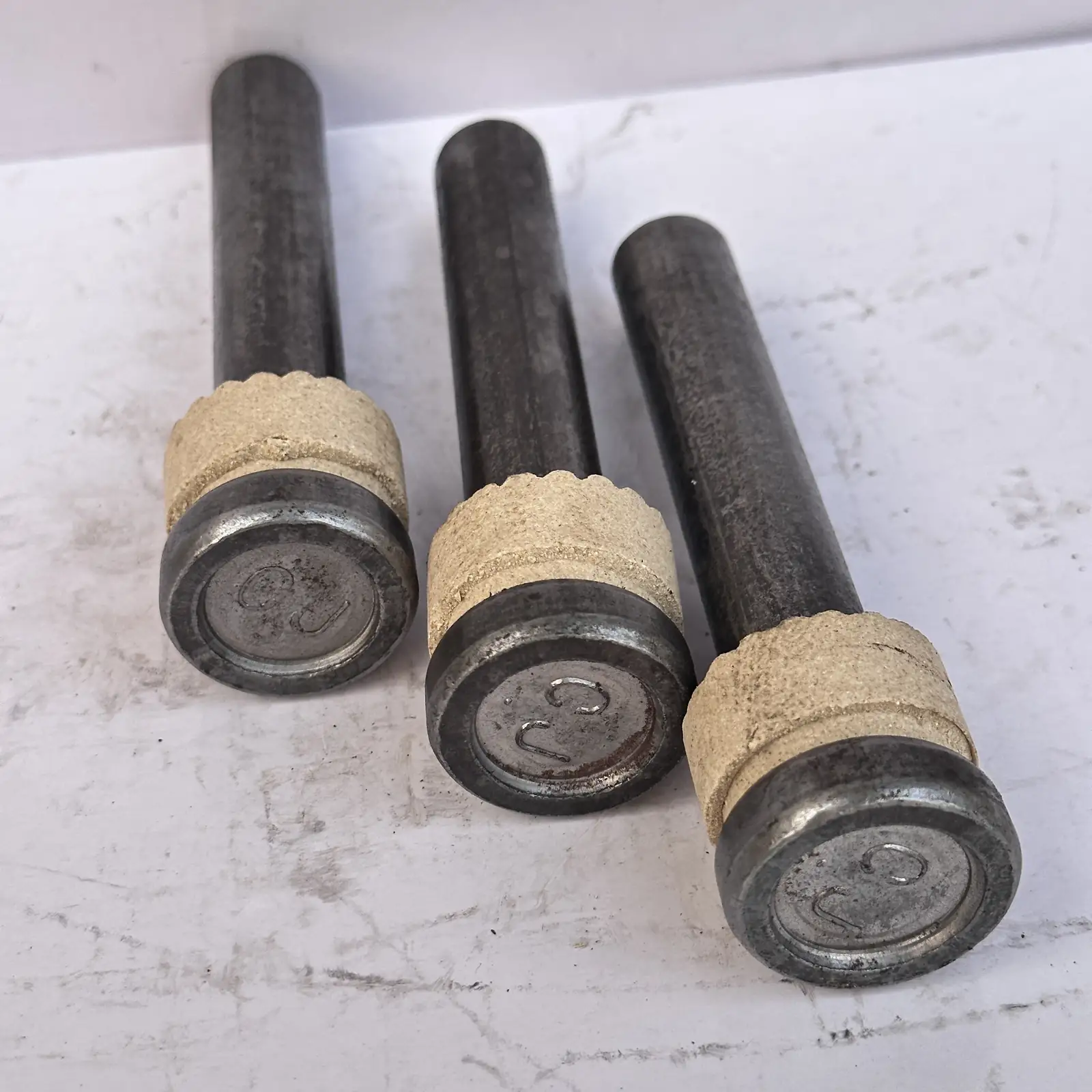

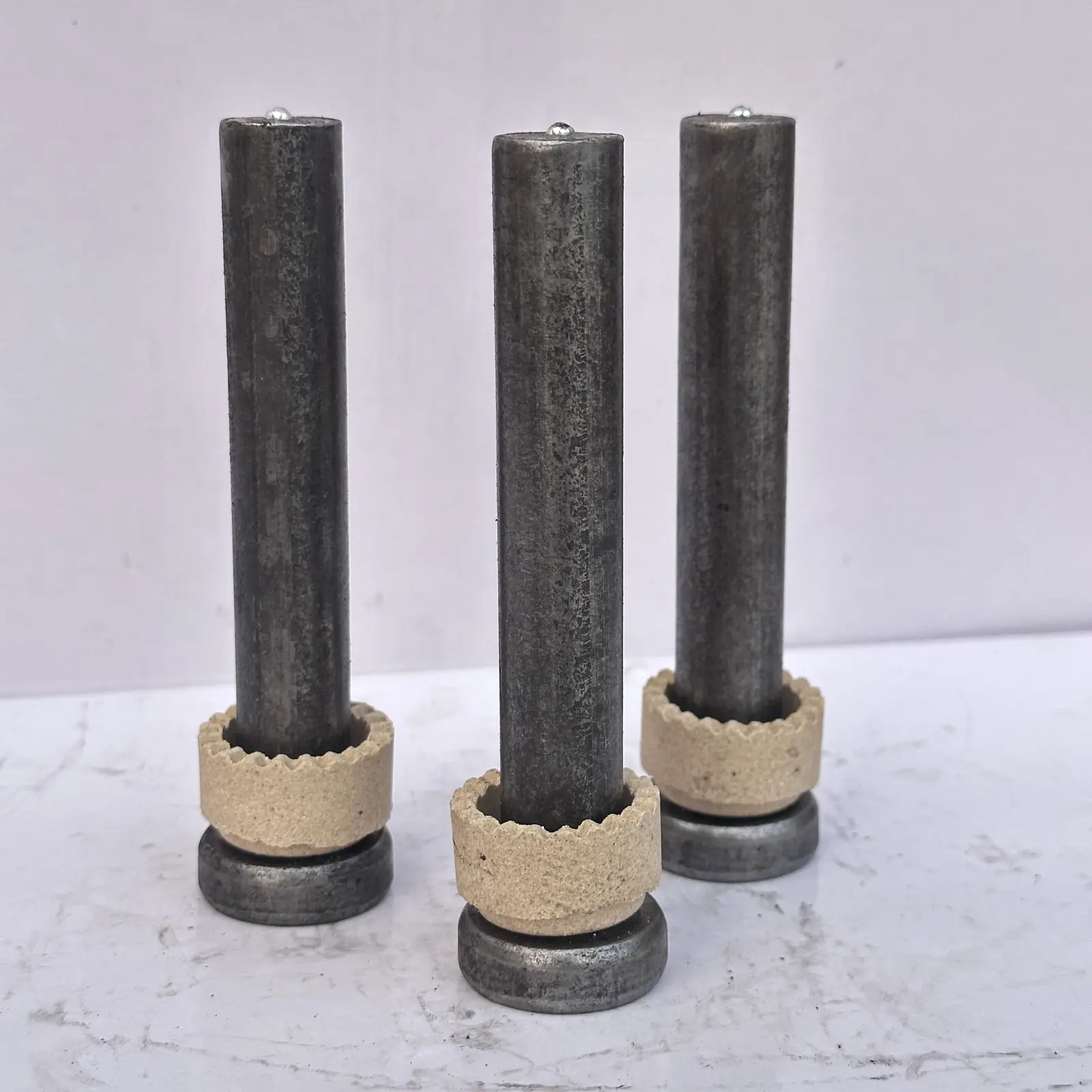

CJ Carbon Steel Cylindrical Head Shear Stud 19×60mm Welding Inquiry

• Grade

  none
  finish

  none
• material

  Carbon Steelcarbon steel
  measurement system

  Metric
• Thread Type

  none

CJ carbon steel cylindrical head shear studs are requested with a 19×60mm designation for arc stud welding. Confirm the actual stud drawing and welding requirements before assessing structural use.

• Cylindrical head studs is the actual type option.
• 60mm is the selectable length.
• M19 is the size-option label.
• Carbon steel is the material description.
• GB/T 10433 is a title reference to verify.

Clarify the 19×60mm designation

The selected 60mm length supports the length requirement. Ask how the M19 label relates to stud diameter, because a thread-size label does not prove that the welding stud is threaded.

Confirm the welding stud geometry

The technical thread description is none. Obtain the head dimensions, shank specification and actual surface condition for the proposed carbon steel stud before selecting welding consumables or equipment.

Request structural acceptance evidence

For arc stud welding, provide the base material and applicable project requirements. Request the relevant GB/T 10433 and welding-procedure evidence rather than assuming a load capacity or shear performance from the stud name.
