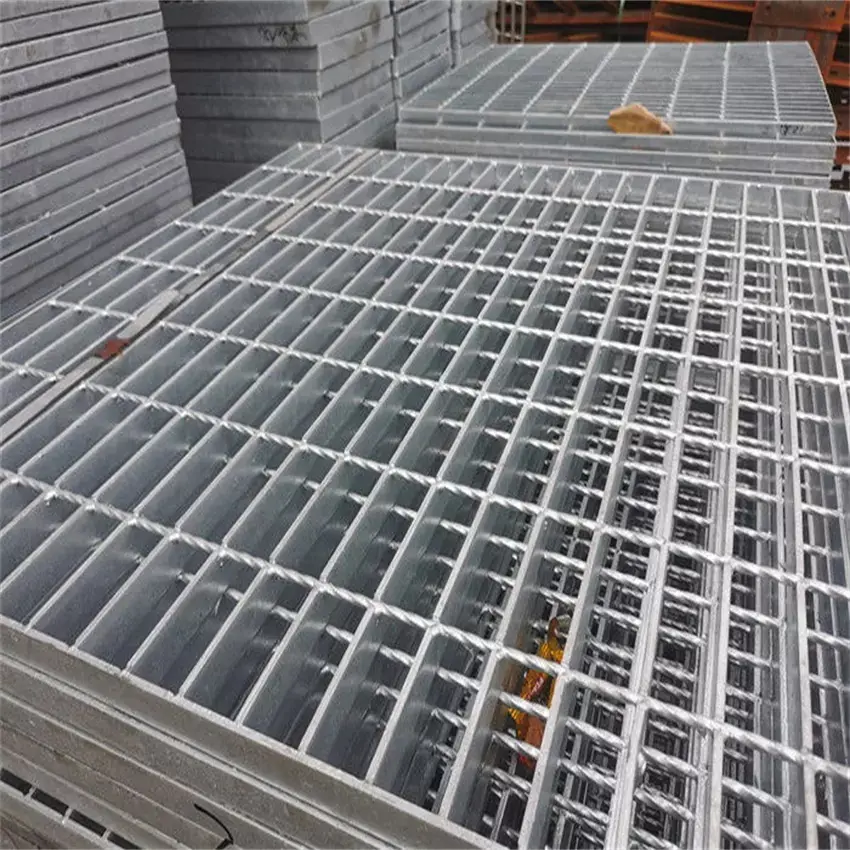

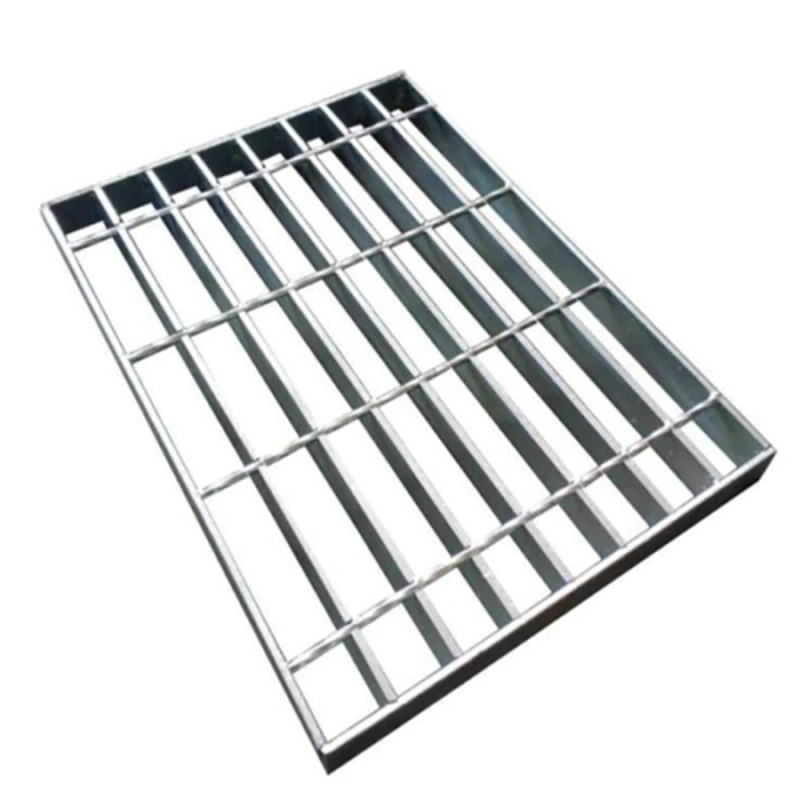

30*5mm Hot-Dip Galvanized Steel Grating Inquiry –HH03ce Actual Thickness and Panel Drawing

• Warranty

  More Than 5 Years
  Feature

  Anti-Corrosion
• Shape

  Square
  After-sale Service

  Online Technical Support, On-Site Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return and Replacement, Other
• Weight

  2kg
  Length

  Customized
• Alloy Or Not

  Is Alloy
  Secondary Or Not

  Non-Secondary
• Project Solution Capability

  graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
  Application

  Office Building, Outdoor
• Design Style

  Modern
  Model Number

  HH03ce
• Material

  Galvanized Steel, Stainless Steel, Low Carbon Steel, Mild Steel, Stainless Steel
  Product Name

  Galvanized Steel Grating
• Standard

  GB/JIS/UK/EN/DIN
  Surface Treatment

  Hot DIP Galvanized, Painting, Self Colour / Untrea
• Grating Size

  30X100, 40X100, 30X50, 40X50 Others
  Transport Package

  Shipped in Containers or LCL Shipment
• Origin

  Made in China
  Production Capacity

  15000 Tons Per Year
• Payment Term

  TT
  Delivery Term

  FOB/CFR/CIF

HH03ce galvanized steel grating has two actual thickness labels: Customized and1.2–1.5mm. The30*5mm title request needs clarification against those selections.

Separate bars from panel dimensions

Define whether30*5mm describes a bearing bar, then specify spacing, panel outline and edge banding. It is not a complete finished-grating size.

• Customized length.
• Square shape field.
• 30X100/40X100 references.
• 30X50/40X50 alternatives.
• Galvanized/low-carbon/mild/stainless family.

Select the supplied surface

Hot-dip galvanizing, painting and untreated references are alternatives. Agree actual steel chemistry and coating acceptance for the selected panel.

Verify project suitability

The2kg field lacks finished dimensions or an areal basis. Request actual panel mass, support details and load tests before assigning outdoor or building service capacity.
