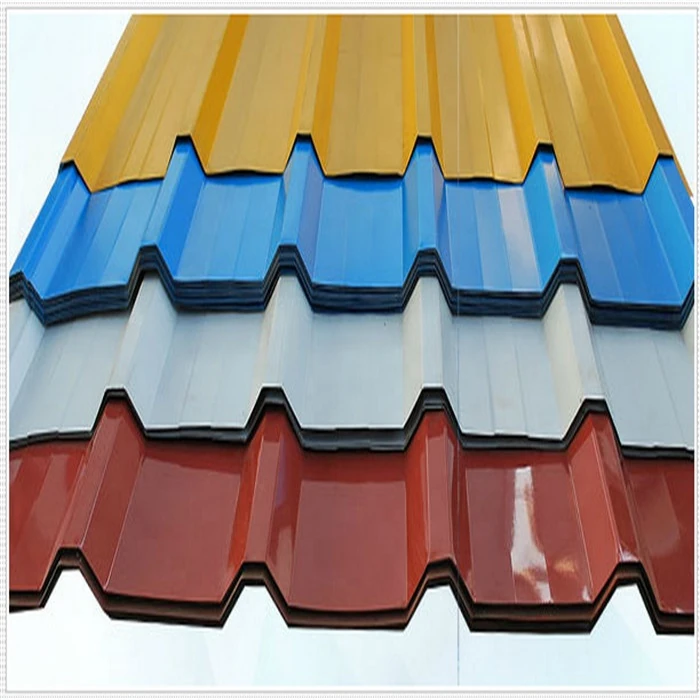

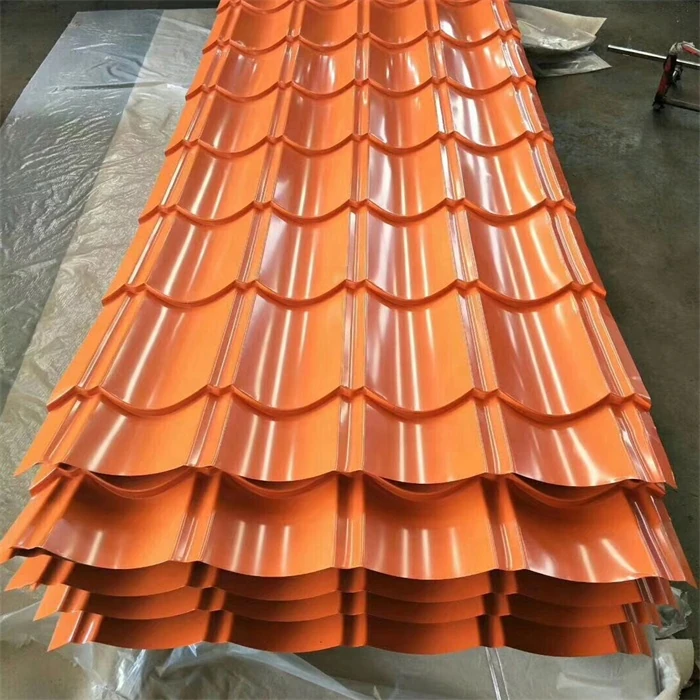

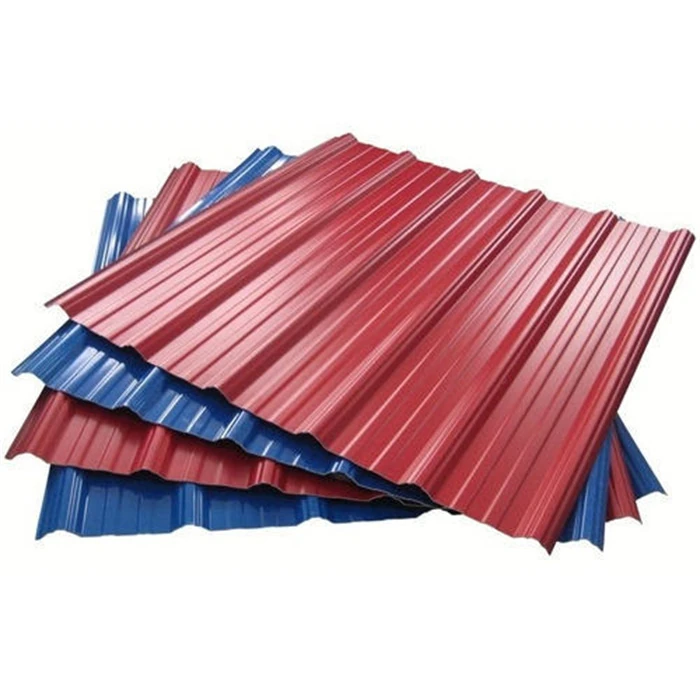

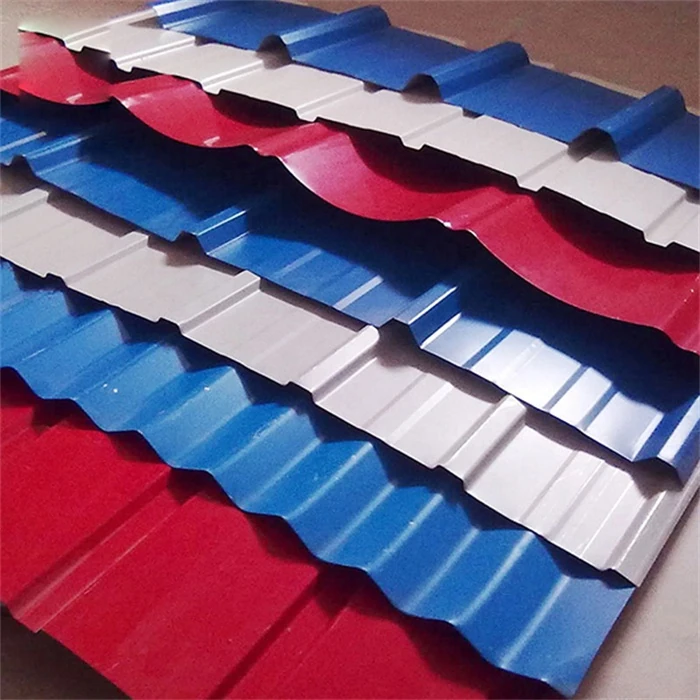

YX35-190-950 Color Coated Galvanized Corrugated Roofing Sheet | Profile Paint and Cut Length

• Hardness

  Mid Hard
  Thickness

  0.12 mm ~ 0.13 mm, 0.12-5.0mm
• Application

  Building construction
  Certificate

  API , CE, RoHS, SNI, BIS, Saso, PVOC, SONCAP, SABS, SIRM, TISI, KS, JIS, Gs, ISO 9001
• Delivery Time

  within 7 days
  Standard

  ASTM
• Tolerance

  ±1%
  Product Name

  YX35-190-950 galvanized color corrugated roofing sheet
• Keyword

  color corrugated roofing sheet
  Surface treatment

  Galvanised
• type

  CORRUGATED
  Thickness Tolerance

  +/-0.02mm
• Width Tolerance

  +/-2mm
  color

  RAL Color (custom patterns are available)
• Coatings

  PE, SMP, HDP, PVDF
  Type of Based Sheet

  Galvanized steel sheet;Galvalume steel sheet;PPGI;PPGL

Agree the actual corrugated profile and coating system before specifying a cut roofing sheet.

Profile dimensions

YX35-190-950 is the named model, while the actual width option spans 1000–1220 mm. Confirm the profile drawing and effective cover width instead of deriving installed coverage solely from the model or overall width.

Thickness and coating

The detail contains both 0.12–0.13 mm and a broader 0.12–5.0 mm thickness description. Resolve the supplied thickness, choose the actual substrate and select one paint chemistry from the listed coating alternatives.

• Profile drawing and cover width
• Actual thickness and tolerance
• Substrate and zinc basis
• RAL color and paint system
• Cut length and installation tests

Roofing acceptance

Several length bands and RAL colors are referenced. Agree the actual cut size and inspected coating; corrugated roofing wording alone establishes no roof load rating, weathering lifetime or availability of every substrate and paint combination.
