Aluminium tube supply for equipment frame drawings
Use the frame drawing to specify alloy, temper, section geometry and supplied lengths before comparing aluminium-tube offers. Our catalogue includes 6061 and 6063 pipe enquiries. We can review the material brief, but the actual available condition and any processing scope need confirmation for your order.
Extract the complete tube requirement

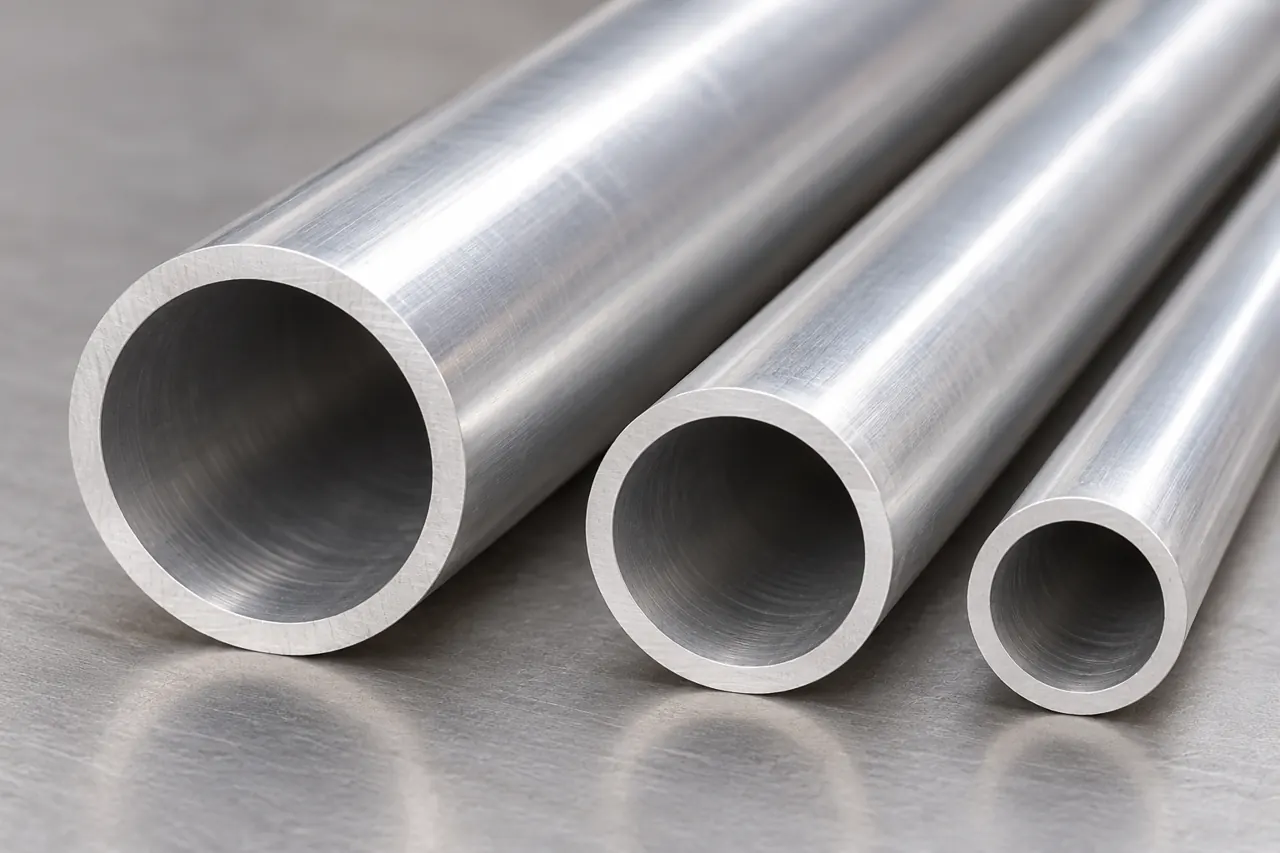

List outside dimensions, wall thickness, length and drawing revision for every tube item. Distinguish round pipe from other frame sections. The catalogue's round-tube reference should not be treated as proof that a different extrusion profile or assembly is available.
State alloy and temper independently
An alloy designation does not specify its supplied temper. Ask the quotation to repeat both fields and identify the relevant material record. Review alternatives with your engineering team before approval, especially when joining or later processing depends on the original material condition.
Check dimensions against assembly needs
Define straightness and dimensional acceptance with a measurement method appropriate to your frame. Identify the surfaces and ends that control fit. Record the required limits in the purchase specification so incoming inspection uses the same basis as the supplier's proposal.
Clarify cut length and finish scope
State whether you need mill lengths, confirmed cutting or another operation. Include end condition and surface-finish requirements. An anodized or finished condition must be confirmed for the actual proposal; a bright product photograph does not establish the treatment or its acceptance standard.
Confirm who supplies the tube
Our wider catalogue covers aluminium material enquiries alongside steel wire and steel shot. Ask us to identify the proposed producer, supply responsibility and available records. Do not infer frame fabrication or in-house extrusion from the catalogue; include requested services separately for confirmation.

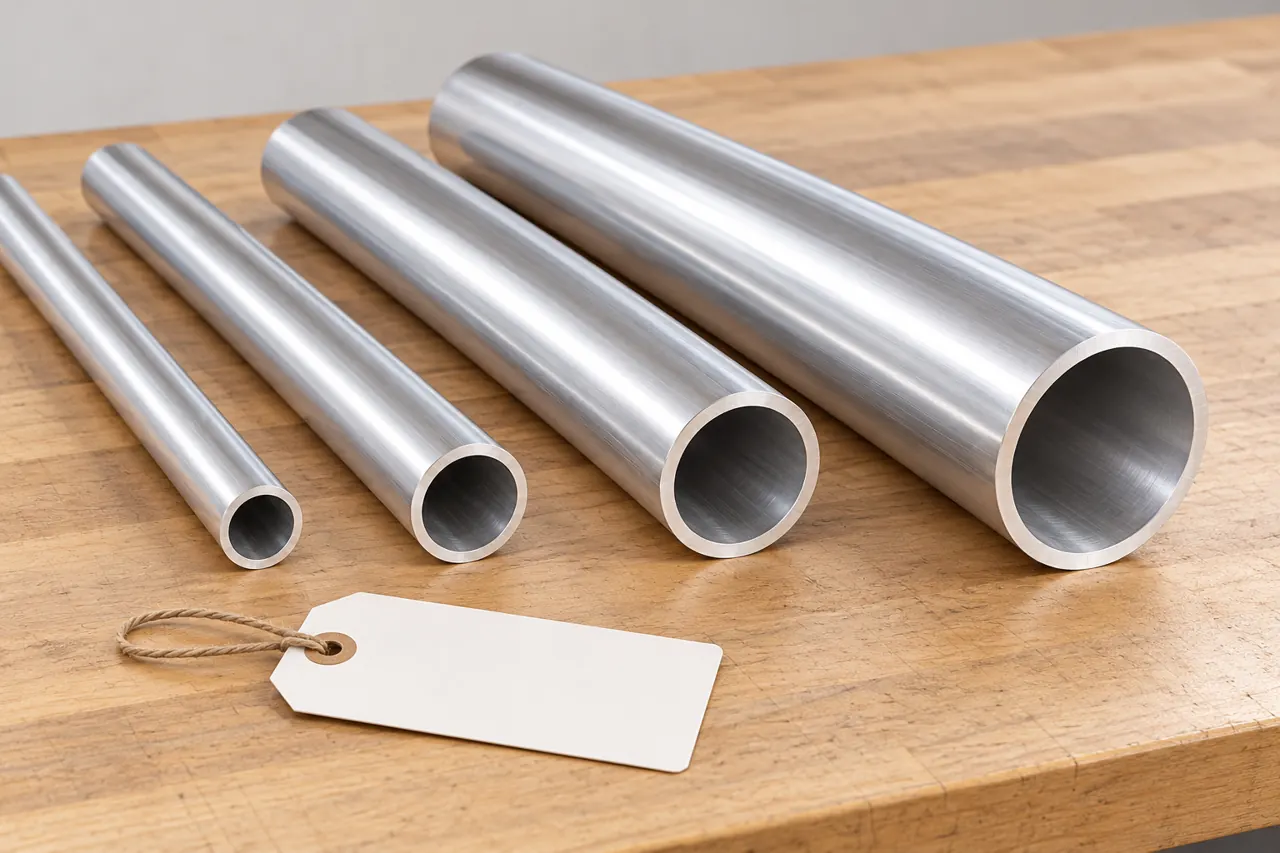

Use the drawing to approve a sample
Review an identified sample against the critical section, wall and surface requirements. If your assembly route needs a trial, retain the result with the material identity. Sample approval should state its coverage, including any checks still required on full delivered lengths.

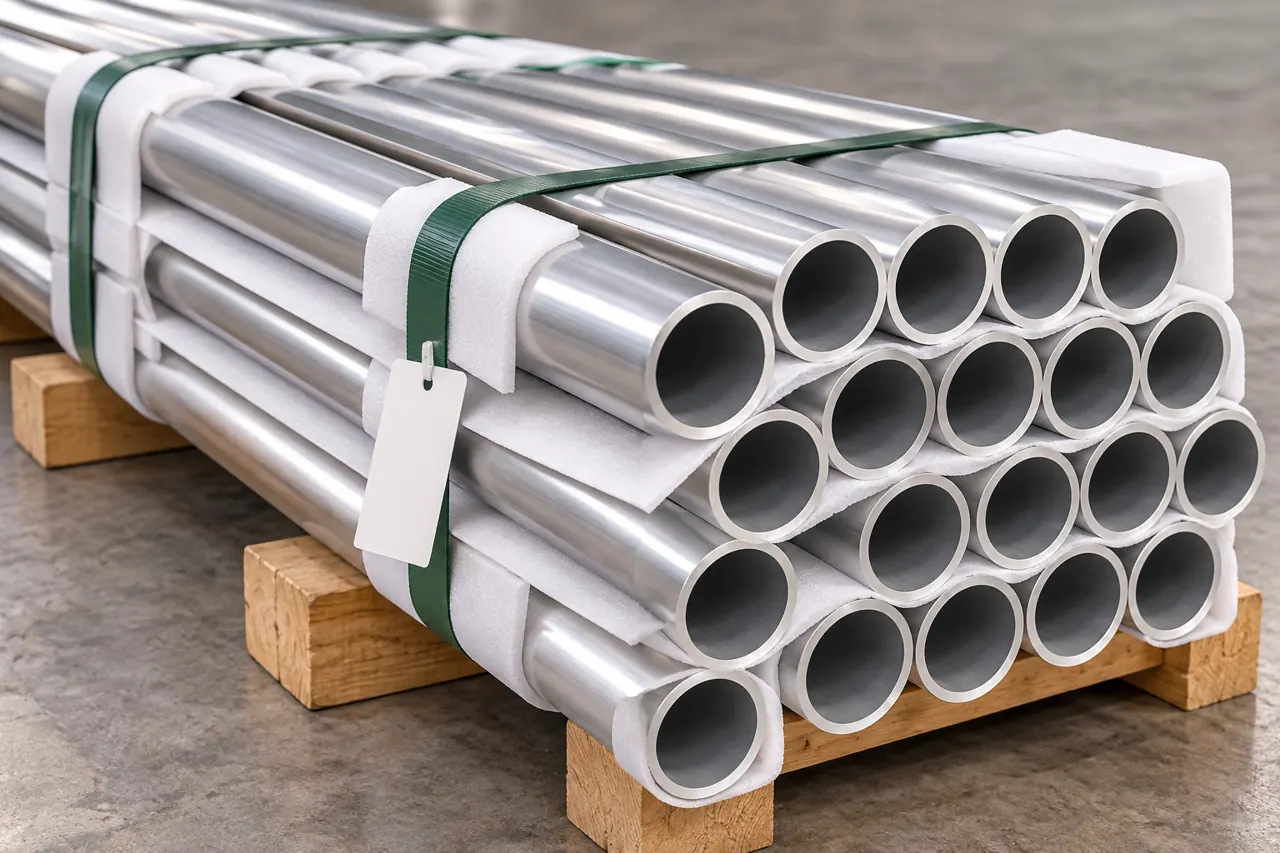

Protect tube surfaces and ends
Agree separators, bundle restraint and identifiers for different tube items. Keep protective material compatible with the required supplied condition. On arrival, record damaged ends or surface marks before material is cut, since later processing can hide their original extent and source.
Control the first repeat lot
Retain the approved tube specification and sample reference. Compare the next delivery's material documents and dimensions before assembly. A change in producer, temper or finish should be reviewed explicitly; the same round-tube description does not by itself establish equivalence to the approved material.
Send the frame material brief
Provide your drawing, alloy, temper, section, wall and cut lengths. Add straightness, surface requirements, quantity and required records. We can review the tube catalogue reference and confirm available material and processing scope, packing and quotation conditions for your equipment-frame project.
