Polished Stainless Steel Bow Shackles for 10Ton Load-Class Inquiries

• application

  General Industry
  material

  Stainless Steel
• measurement system

  Imperial (Inch)
  shape

  bow
• model number

  Stainless Steel Screw Pin Anchor Shackles BC
  Bar Diameter

  custom
• Maximum load capacity

  10Ton
  Overall Length

  254mm(10in)
• Pin Diameter

  4-39mm(0.16-1.54in)
  Pin Type

  removable screw pin
• shackles pin type

  with screw collar pin
  shackles type

  Bow Shackles
• surface treatment

  Polished
  Type

  bolt Type
• Width

  15mm(0.59in)

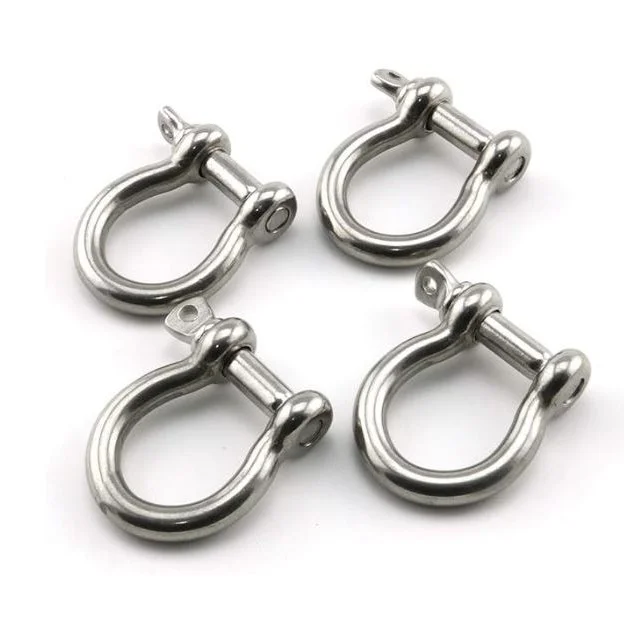

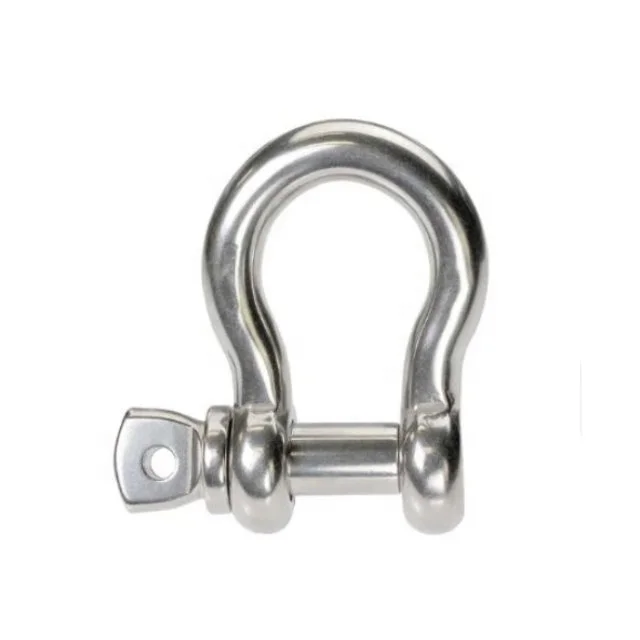

Polished stainless steel bow shackles are offered with a 10Ton load-capacity selection. Confirm the exact supplied shackle and load documentation before application approval.

Resolve the pin arrangement

The description includes removable screw pin, screw collar pin and bolt-type terminology. Request the actual pin and retaining arrangement so that the order identifies one specific shackle configuration.

• Bow is the stated shackle shape.
• Polished is the surface treatment.
• The actual pin-diameter option spans 4-39mm.

Specify one set of dimensions

The selectable shackle diameter spans 3/16 to 1-1/2 inches rather than identifying one diameter. Confirm the required pin, opening and overall dimensions; the stated 254mm length should not be assumed to apply to every size in the range.

Verify the rated configuration

Obtain the actual stainless grade, identification and applicable working-load/test documents. The 10Ton selection is not independent proof of a certified safe working load or suitability for a lifting arrangement.
