DX51D Z100 Z275 PPGI Color Coil Inquiry | 0.3mm 0.4mm 0.5mm Prepainted GI Requirements

• Coating

  Z81~Z120
  Hardness

  Mid Hard
• Thickness

  0.2mm - 1.5mm or customized, 0.2~1.5mm or customized
  Type

  Steel Coil
• Application

  Making Pipes, Cutting Sheets, Making Small Tools, Making Corrugated Sheets, Making Container, Making Fences
  Certificate

  API , CE, BIS, JIS, Gs, ISO 9001
• Delivery Time

  within 7 days
  Grade

  Color Coated Coil
• Processing Service

  Cutting, Decoiling, Welding
  Standard

  ASTM
• Tolerance

  ±1%
  Product Name

  Color Coated Steel Coil
• Surface

  Galvanized Coated
  Color coating thickness

  15 - 25μm or customized
• Width

  750-1550mm or customized
  Length

  2000-6000 mm or customized
• Color coated pattern

  Red,Blue,White,Green,etc or as your request
  Tensile strength

  300~600MPa or customized
• Payment term

  30%T/T Advance + 70% Balance
  Package

  Sea-worthy Package

Agree the actual substrate and zinc code before selecting a prepainted galvanized coil.

Code reconciliation

The title requests DX51D, Z100 and Z275 while the detail lists Z81–Z120. Confirm actual base designation and delivered coating measurement rather than treating every code as interchangeable certified zinc coverage.

Paint and dimensions

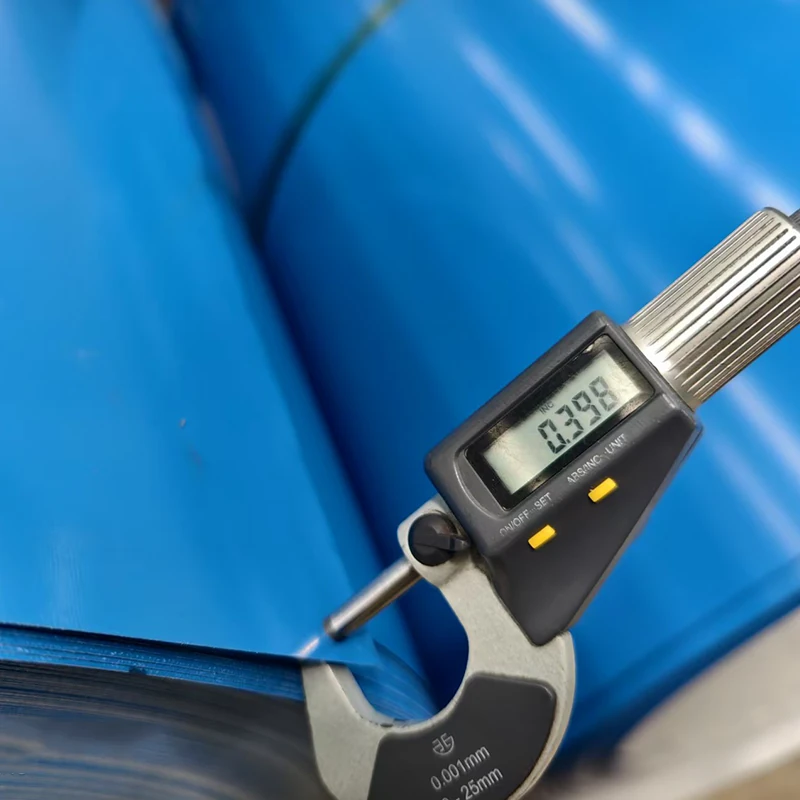

The requested thicknesses sit within a broad scope and actual length and width options are ranges. Select one actual size, color and paint system, including the applicable 15–25 µm film reference and delivered surface acceptance.

• Actual substrate designation
• Zinc code and measurement
• Thickness, width and length
• Color and paint film basis
• Mechanical and coating inspection

Test scope

The tensile range is not paired with actual grade or size. Request applicable material records; color and factory wording provides no verified producer identity, all-color stock, coating lifetime or certified performance for every option.
