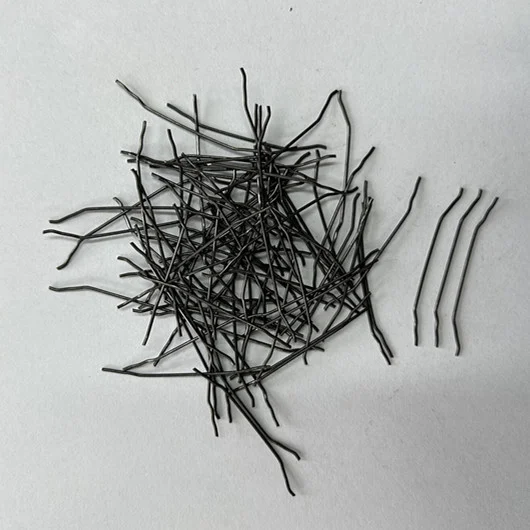

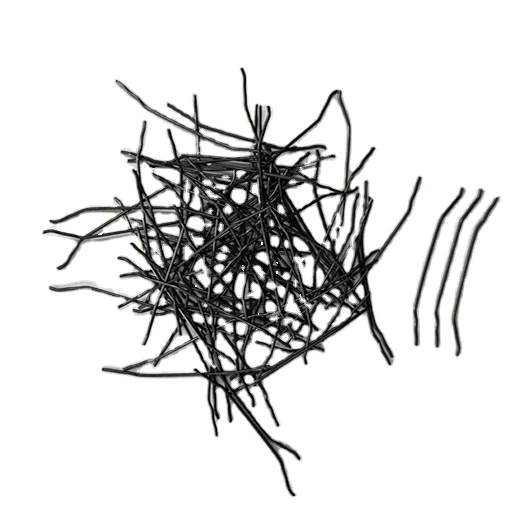

0.75x35mm Hooked End Cold Drawn Steel Fiber | Outdoor Concrete Reinforcement Inquiry

• Warranty

  N/A
  After-sale Service

  Onsite Inspection
• Alloy Or Not

  Non-Alloy
  Secondary Or Not

  Non-Secondary
• Project Solution Capability

  total solution for projects
  Application

  Outdoor, bridge
• Design Style

  Industrial
  Model Number

  SD45/35
• Material

  Steel, carbon steel wire, Low Carbon Steel
  Type

  SD45/35
• Diameter

  0.75mm
  Length

  35mm
• L/D

  45
  Tensile strength

  >1100MPa
• Roots/kg

  8100
  MOQ

  20KG
• Packing

  20kg per bag,24tons per pallet

This low carbon steel fiber listing describes hooked end material for outdoor concrete reinforcement inquiries.

Geometry and model

Diameter is 0.75 mm and length is 35 mm, with model SD45/35 and stated L/D 45. Confirm the dimensional and aspect ratio relationship rather than silently correct one figure.

Mechanical inspection

The stated tensile value is greater than 1100 MPa. Request the actual test basis and dimensional inspection for the proposed fibers instead of treating the value as finished concrete performance.

• Diameter and length tolerance
• Hook shape and dimensions
• Actual fiber material
• Tensile test documentation
• Batch consistency requirements

Concrete design boundary

No dosage or finished concrete strength result is supplied. Define the mix, exposure and design acceptance requirements separately; bridge and outdoor applications do not establish a reinforcement design or a rated structural result.
